Azcue VM Range

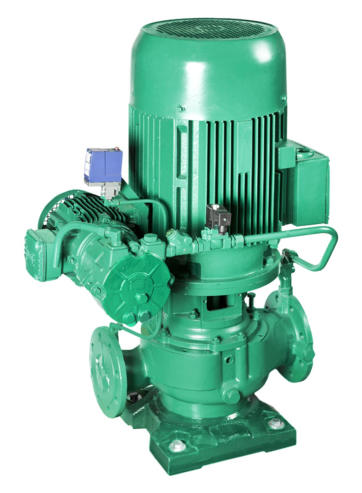

Vertical inline close coupled centrifugal pumps. Designed for marine, cooling and water supply applications. VM pumps are ideal for small spaces due to the inline construction of the pump. Flow rates up to 1000m³/hr Head up to 130m Port sizes range from 50mm to 150mm Temperature up to +120°C Available Speed / Hz 1450 or 2900rpm 50Hz 1750 or 3500rpm 60Hz Available in Cast Iron or Bronze. Models available: VM without priming pump. VM-EP with priming pump and automatic stop unit. VM-EF with priming pump and automatic stop unit, but with mechanical purger with float. VM-VP with priming system by means of venturi ejector driven by air pressure. Azcue VM Pump model numbers: 50/16, 50/20, 50/26 and 50/33 65/26 80/16, 80/20, 80/26, 80/33 and 80/40 100/20, 100/26 and 100/33 125/20 and 125/26 For price and technical information, please contact us at sales@bombas-azcue.co.uk
